Extract context-specific regulator embeddings from ChromBERT¶

This notebook shows how to extract regulator embeddings using the ChromBERT-tools Python API.

embed_regulator API: Generate regulator embeddings for input regulators across user-specified regions.

umap_plot API: Visualize regulator embeddings with UMAP using user-defined annotations.

For the bash command-line usage, see `examples/cli/embed_regulator.ipynb <../cli/embed_regulator.ipynb>`__.

For more details, please refer to the `embed_regulator <https://chrombert-tools.readthedocs.io/en/latest/commands/embed_regulator.html>`__ command documentation.

[1]:

from chrombert_tools import embed_regulator, umap_plot
import os
os.environ["CUDA_VISIBLE_DEVICES"] = "1" # GPU device

Example 1¶

[2]:

# Returns:
# - regulator_means: A Python dictionary mapping each matched regulator to its 768-dimensional mean embedding.
# - regulator_emb_dict: A Python dictionary mapping each matched regulator to its Region-aware regulator embeddings
# - overlap_region_bed: Input regions that overlap ChromBERT reference bins.
results = embed_regulator(
    region='../data/CTCF_ENCFF664UGR_sample100.bed', # your region
    regulator="EZH2;BRD4;CTCF;FOXA3;myod1;myF5", # your regulators
    odir="./output_emb_regulator_1kb", # output directory
    genome="hg38",        # Options: "hg38", "mm10"
    resolution="1kb",     # Options: "1kb", "2kb", "4kb", "200bp"
)
mean_regulator_embs_dict = results.regulator_means #  Dict[regulator_name, mean_embedding], shape (768,)
regulator_emb_dict = results.regulator_emb_dict # Dict[regulator_name, per_region_embeddings], shape (N_regions, 768)
regions = results.overlap_region_bed # DataFrame with columns [chrom, start, end, build_region_index,start_input,end_input]

Region summary - total: 100, overlapping with ChromBERT: 100 (one region may overlap multiple ChromBERT regions, we keep overlaps with ≥50% coverage of either the ChromBERT bin or the input region), non-overlapping: 0
Note: All regulator names were converted to lowercase for matching.
Regulator count summary - requested: 6, matched in ChromBERT: 5, not found: 1, not found regulator: ['foxa3']
ChromBERT regulators: /mnt/Storage/home/chenqianqian/.cache/chrombert/data/config/hg38_6k_regulators_list.txt
Load pretrained ckpt /mnt/Storage/home/chenqianqian/.cache/chrombert/data/checkpoint/hg38_6k_1kb_pretrain.ckpt successfully!
Your supervised_file does not contain the 'label' column. Please verify whether ground truth column ('label') is required. If it is not needed, you may disregard this message.
Your supervised_file does not contain the 'label' column. Please verify whether ground truth column ('label') is required. If it is not needed, you may disregard this message.

Computing regulator embeddings: 100%|██████████| 25/25 [00:02<00:00,  8.47it/s]


Finished!
Focus region summary - total: 100, overlapping with ChromBERT: 100, non-overlapping: 0
Overlapping regions BED file: ./output_emb_regulator_1kb/overlap_region.bed
Non-overlapping regions BED file: ./output_emb_regulator_1kb/no_overlap_region.bed
Mean regulator embeddings saved to: ./output_emb_regulator_1kb/mean_regulator_emb.pkl
Region-aware regulator embeddings saved to: ./output_emb_regulator_1kb/region_aware_regulator_emb.hdf5
Embedding type: general

[3]:

# Python dictionary mapping each matched regulator to its 768-dimensional mean embedding.
for key, value in mean_regulator_embs_dict.items():
    print(key, value.shape)

myf5 (768,)
ezh2 (768,)
ctcf (768,)
myod1 (768,)
brd4 (768,)

[4]:

# Python dictionary mapping each matched regulator to its Region-aware regulator embeddings
for key, value in regulator_emb_dict.items():
    print(key, value.shape)

myf5 (100, 768)
ezh2 (100, 768)
ctcf (100, 768)
myod1 (100, 768)
brd4 (100, 768)

[5]:

# Input regions

import pandas as pd
input_bed = pd.read_csv("../data/CTCF_ENCFF664UGR_sample100.bed",sep='\t',header=None)
input_bed.head()

[5]:

	0	1	2	3	4	5	6	7	8	9
0	chr16	18801589	18802050	.	1000	.	763.04942	-1.0	5.16371	223
1	chr16	57648947	57649478	.	1000	.	758.51709	-1.0	5.16371	268
2	chr20	36605339	36605842	.	1000	.	756.09888	-1.0	5.16371	234
3	chr2	46986976	46987465	.	1000	.	747.99355	-1.0	5.16371	233
4	chr16	28945489	28946040	.	1000	.	747.87076	-1.0	5.16371	263

[6]:

# Input regions that overlap ChromBERT reference bins.

regions

[6]:

	chrom	start	end	build_region_index	start_input	end_input
0	1	37990000	37991000	32658	37989946	37990368
1	11	2400000	2401000	289179	2400199	2400617
2	12	6779000	6780000	391108	6778809	6779319
3	12	52981000	52982000	424926	52980788	52981316
4	12	53676000	53677000	425578	53676021	53676448
...	...	...	...	...	...	...
95	6	53172000	53173000	1660979	53171843	53172315
96	6	131628000	131629000	1713078	131628105	131628616
97	6	158704000	158705000	1735665	158704189	158704642
98	9	128117000	128118000	2049996	128117589	128118035
99	9	136123000	136124000	2057396	136122853	136123320

100 rows × 6 columns

Example 2¶

[7]:

results_max = embed_regulator(
    region = "../data/max_k562_downsample_region.csv", # your region
    regulator = "max", # your regulators
    odir = "max_k562", # output directory
    oname = "max_emb", # output name
    genome = "hg38", # genome
)

Region summary - total: 400, overlapping with ChromBERT: 400 (one region may overlap multiple ChromBERT regions, we keep overlaps with ≥50% coverage of either the ChromBERT bin or the input region), non-overlapping: 0
Note: All regulator names were converted to lowercase for matching.
Regulator count summary - requested: 1, matched in ChromBERT: 1, not found: 0, not found regulator: []
ChromBERT regulators: /mnt/Storage/home/chenqianqian/.cache/chrombert/data/config/hg38_6k_regulators_list.txt
Load pretrained ckpt /mnt/Storage/home/chenqianqian/.cache/chrombert/data/checkpoint/hg38_6k_1kb_pretrain.ckpt successfully!

Computing regulator embeddings: 100%|██████████| 100/100 [00:07<00:00, 13.70it/s]


Finished!
Focus region summary - total: 401, overlapping with ChromBERT: 400, non-overlapping: 0
Overlapping regions BED file: max_k562/overlap_region.bed
Non-overlapping regions BED file: max_k562/no_overlap_region.bed
Mean regulator embeddings saved to: max_k562/mean_max_emb.pkl
Region-aware regulator embeddings saved to: max_k562/region_aware_max_emb.hdf5
Embedding type: general

[8]:

# Returns:
# - regulator_means: A Python dictionary mapping each matched regulator to its 768-dimensional mean embedding.
# - regulator_emb_dict: A Python dictionary mapping each matched regulator to its Region-aware regulator embeddings
# - overlap_region_bed: Input regions that overlap ChromBERT reference bins.

mean_regulator_embs_dict_max = results_max.regulator_means
regulator_emb_dict_max = results_max.regulator_emb_dict
regions_max = results_max.overlap_region_bed

[9]:

regulator_emb_dict_max.keys()

[9]:

dict_keys(['max'])

[10]:

regulator_emb_dict_max['max'].shape,regulator_emb_dict_max['max']

[10]:

((400, 768),
 array([[-0.05834961,  0.96484375,  0.70703125, ...,  0.10839844,
          0.5390625 ,  1.828125  ],
        [-0.0456543 ,  0.5703125 ,  0.20214844, ..., -0.70703125,
         -0.61328125,  0.8828125 ],
        [ 0.7421875 ,  1.4765625 ,  0.09716797, ...,  0.31445312,
          1.40625   ,  2.703125  ],
        ...,
        [ 2.75      ,  0.29882812,  1.953125  , ..., -0.80078125,
         -0.87890625, -1.3515625 ],
        [ 3.515625  ,  0.48632812,  1.71875   , ..., -1.03125   ,
         -0.8046875 , -1.65625   ],
        [ 4.1875    ,  1.734375  ,  2.46875   , ...,  0.36328125,
         -0.34765625, -1.1015625 ]], dtype=float32))

[15]:

# Map each region to its user-defined annotation class

# Convert chromosome identifiers to standard chromosome names
def chrom_int_to_series(chrom):
    chrom = str(chrom)
    if not chrom.startswith("chr"):
        chrom = "chr" + chrom
    if chrom == "chr23":
        chrom = "chrX"
    if chrom == "chr24":
        chrom = "chrY"

    return chrom



input_df = pd.read_csv("../data/max_k562_downsample_region.csv") # Your input regions
input_df.head()
input_df.columns = ["chrom","start_input","end_input","build_region_index","anno"]

regions_max["chrom"] = regions_max["chrom"].apply(chrom_int_to_series) # Input regions that overlap ChromBERT reference bins. Convert chromosome identifiers to standard chromosome names,
regions_max = regions_max.merge(input_df[["chrom","start_input","end_input","anno"]],on=["chrom","start_input","end_input"])
regions_max

[15]:

	chrom	start	end	build_region_index	start_input	end_input	label	anno
0	chr1	976000	977000	270	976000	977000	1	1
1	chr1	1925000	1926000	1146	1925000	1926000	1	1
2	chr1	6702000	6703000	5117	6702000	6703000	1	1
3	chr1	8251000	8252000	6517	8251000	8252000	0	0
4	chr1	10724000	10725000	8797	10724000	10725000	1	1
...	...	...	...	...	...	...	...	...
395	chrX	102658000	102659000	2108176	102658000	102659000	0	0
396	chrX	119639000	119640000	2117400	119639000	119640000	0	0
397	chrX	133289000	133290000	2124292	133289000	133290000	0	0
398	chrX	145290000	145291000	2129954	145290000	145291000	0	0
399	chrY	9154000	9155000	2136280	9154000	9155000	0	0

400 rows × 8 columns

[16]:

umap_plot(
    regulator_emb_dict_max['max'],
    regions_max["anno"],
    odir = "max_k562",
)

/mnt/Storage/home/chenqianqian/miniconda3/envs/chrombert/lib/python3.9/site-packages/umap/umap_.py:1952: UserWarning: n_jobs value 1 overridden to 1 by setting random_state. Use no seed for parallelism.
  warn(

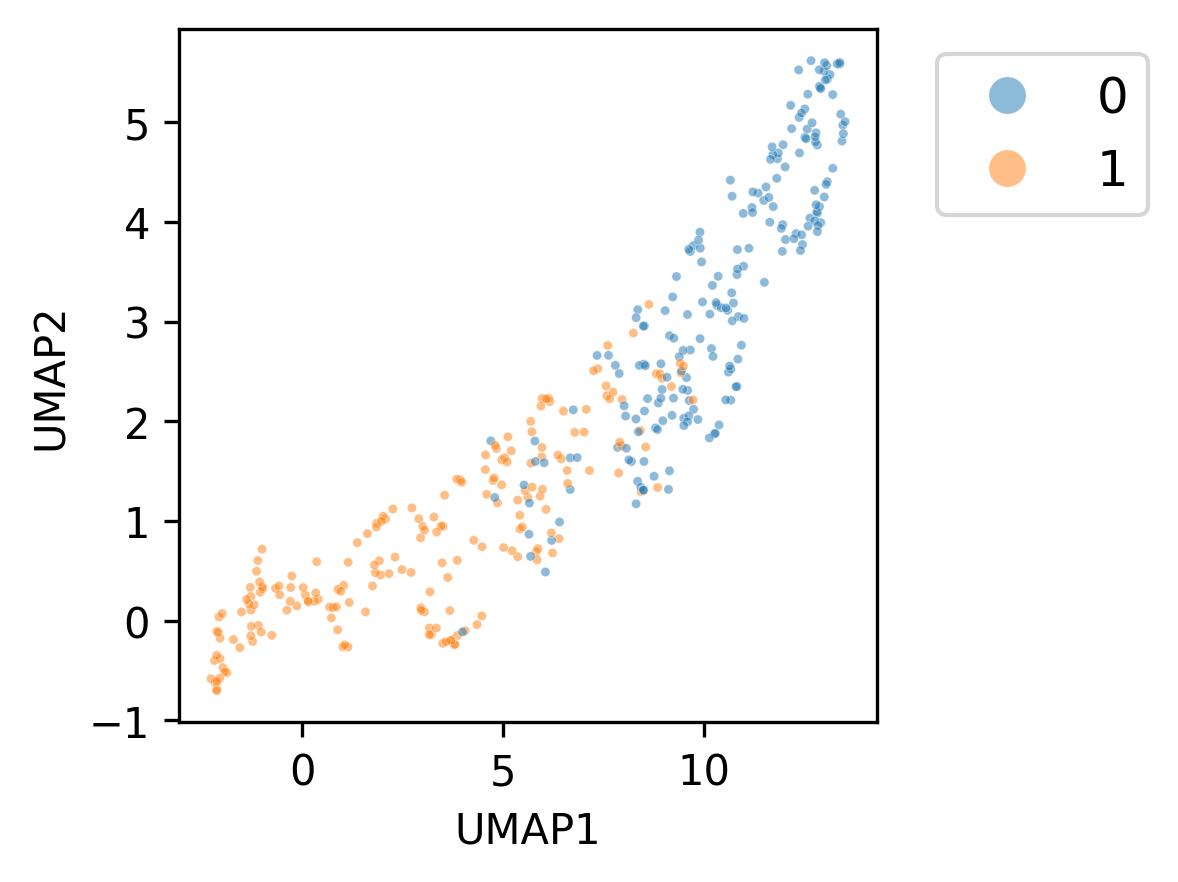

../../_images/examples_api_embed_regulator_14_1.png

200bp¶

[ ]:

# Returns:
# - regulator_means: A Python dictionary mapping each matched regulator to its 768-dimensional mean embedding.
# - regulator_emb_dict: A Python dictionary mapping each matched regulator to its Region-aware regulator embeddings
# - overlap_region_bed: Input regions that overlap ChromBERT reference bins.

results_max_200bp = embed_regulator(
    region = "../data/max_k562_downsample_region.csv",
    regulator = "max",
    odir = "max_k562_200bp",
    oname = "max_emb",
    genome = "hg38",
    resolution = "200bp",
)
mean_regulator_embs_dict_max_200bp = results_max_200bp.regulator_means
regulator_emb_dict_max_200bp = results_max_200bp.regulator_emb_dict
regions_max_200bp = results_max_200bp.overlap_region_bed

Region summary - total: 400, overlapping with ChromBERT: 1373 (one region may overlap multiple ChromBERT regions, we keep overlaps with ≥50% coverage of either the ChromBERT bin or the input region), non-overlapping: 400
Note: All regulator names were converted to lowercase for matching.
Regulator count summary - requested: 1, matched in ChromBERT: 1, not found: 0, not found regulator: []
ChromBERT regulators: /mnt/Storage/home/chenqianqian/.cache/chrombert/data/config/hg38_6k_regulators_list.txt
Load pretrained ckpt /mnt/Storage/home/chenqianqian/.cache/chrombert/data/checkpoint/hg38_6k_200bp_pretrain.ckpt successfully!

Computing regulator embeddings: 100%|██████████| 344/344 [00:23<00:00, 14.64it/s]


Finished!
Focus region summary - total: 401, overlapping with ChromBERT: 1373, non-overlapping: 400
Overlapping regions BED file: max_k562_200bp/overlap_region.bed
Non-overlapping regions BED file: max_k562_200bp/no_overlap_region.bed
Mean regulator embeddings saved to: max_k562_200bp/mean_max_emb.pkl
Region-aware regulator embeddings saved to: max_k562_200bp/region_aware_max_emb.hdf5
Embedding type: general

[15]:

umap_plot(
    regulator_emb_dict_max_200bp['max'],
    regions_max_200bp["label"],
    odir = "max_k562_200bp",
)

/mnt/Storage/home/chenqianqian/miniconda3/envs/chrombert/lib/python3.9/site-packages/umap/umap_.py:1952: UserWarning: n_jobs value 1 overridden to 1 by setting random_state. Use no seed for parallelism.
  warn(

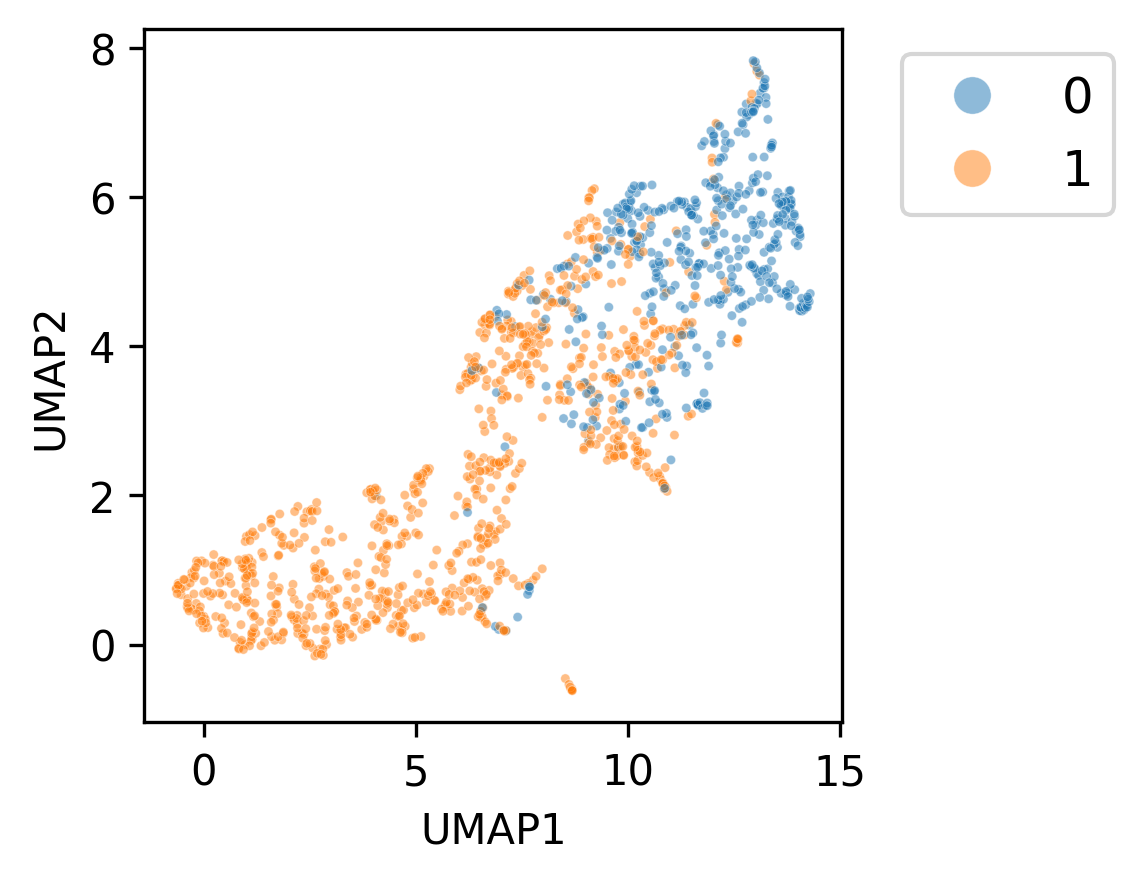

../../_images/examples_api_embed_regulator_17_1.png

Generate cell-type-specific embeddings using a fine-tuned checkpoint¶

We use a fine-tuned checkpoint as input.

The embed_regulator API uses this checkpoint to generate context-specific embeddings.

[ ]:

# # Download example data
# # Myoblast and fibroblast data: ATAC-seq bigWig and peak files
# import subprocess
# import os
# if not os.path.exists('../data/myoblast_ENCFF647RNC_peak.bed'):
#     cmd = f'wget https://www.encodeproject.org/files/ENCFF647RNC/@@download/ENCFF647RNC.bed.gz -O ../data/myoblast_ENCFF647RNC_peak.bed.gz'
#     subprocess.run(cmd, shell=True)
#     cmd = f"gzip -d ../data/myoblast_ENCFF647RNC_peak.bed.gz"
#     subprocess.run(cmd, shell=True)

# if not os.path.exists('../data/myoblast_ENCFF149ERN_signal.bigwig'):
#     cmd = f'wget https://www.encodeproject.org/files/ENCFF149ERN/@@download/ENCFF149ERN.bigWig -O ../data/myoblast_ENCFF149ERN_signal.bigwig'
#     subprocess.run(cmd, shell=True)



### fine-tuned a cell-type-specific model
# from chrombert_tools import region_activity_regression
# results_myoblast_specific = region_activity_regression(
#     odir = "./output_cell_specific_emb_train", # output directory
#     acc_signal1 = "../data/myoblast_ENCFF149ERN_signal.bigwig", # your focus cell-type accessibility data
#     acc_peak1 = "../data/myoblast_ENCFF647RNC_peak.bed", # your focus cell-type peak data
#     genome = "hg38", # genome
#     resolution = "1kb", # resolution
# )

[ ]:

import glob
from chrombert_tools import embed_regulator
ft_ckpt_dir = "./output_cell_specific_emb_train/train/**/*.ckpt"  # Use checkpoints from embed_region.ipynb if available; otherwise, run the code above first

ft_ckpt = glob.glob(ft_ckpt_dir, recursive=True)[0]
ft_ckpt

'./output_cell_specific_emb_train/train/try_00_seed_55/lightning_logs/lightning_logs/version_0/checkpoints/epoch=0-step=63.ckpt'

[ ]:

results_myoblast_specific_2 = embed_regulator(
    region = "../data/myoblast_ENCFF647RNC_peak_100.bed", # Your input regions
    regulator = "myf5", # Your regulators
    odir = "./output_cell_specific_emb_myf5", # Output directory
    ft_ckpt = ft_ckpt, # Fine-tuned checkpoint
    genome = "hg38", # Genome
    resolution = "1kb", # Resolution
)

Region summary - total: 100, overlapping with ChromBERT: 101 (one region may overlap multiple ChromBERT regions, we keep overlaps with ≥50% coverage of either the ChromBERT bin or the input region), non-overlapping: 0
Note: All regulator names were converted to lowercase for matching.
Regulator count summary - requested: 1, matched in ChromBERT: 1, not found: 0, not found regulator: []
ChromBERT regulators: /mnt/Storage/home/chenqianqian/.cache/chrombert/data/config/hg38_6k_regulators_list.txt
Using provided fine-tuned checkpoint: ./output_cell_specific_emb_train/train/try_00_seed_55/lightning_logs/lightning_logs/version_0/checkpoints/epoch=0-step=63.ckpt
Load pretrained ckpt /mnt/Storage/home/chenqianqian/.cache/chrombert/data/checkpoint/hg38_6k_1kb_pretrain.ckpt successfully!
Loading checkpoint from ./output_cell_specific_emb_train/train/try_00_seed_55/lightning_logs/lightning_logs/version_0/checkpoints/epoch=0-step=63.ckpt
Loading from pl module, remove prefix 'model.'
Loading from pl module, replace 'pretrain_model' with 'pretrain_model.chrombert'
Loaded 111/111 parameters
Your supervised_file does not contain the 'label' column. Please verify whether ground truth column ('label') is required. If it is not needed, you may disregard this message.
Your supervised_file does not contain the 'label' column. Please verify whether ground truth column ('label') is required. If it is not needed, you may disregard this message.

Computing regulator embeddings: 100%|██████████| 26/26 [00:02<00:00, 12.77it/s]


Finished!
Focus region summary - total: 100, overlapping with ChromBERT: 101, non-overlapping: 0
Overlapping regions BED file: ./output_cell_specific_emb_myf5/overlap_region.bed
Non-overlapping regions BED file: ./output_cell_specific_emb_myf5/no_overlap_region.bed
Mean regulator embeddings saved to: ./output_cell_specific_emb_myf5/mean_regulator_emb.pkl
Region-aware regulator embeddings saved to: ./output_cell_specific_emb_myf5/region_aware_regulator_emb.hdf5
Embedding type: cell-specific

[18]:

results_myoblast_specific_2.regulator_means["myf5"].shape

[18]:

(768,)

[19]:

results_myoblast_specific_2.regulator_emb_dict["myf5"].shape

[19]:

(101, 768)

[20]:

results_myoblast_specific_2.regulator_emb_dict["myf5"]

[20]:

array([[ 0.44140625,  1.53125   ,  1.96875   , ..., -0.84375   ,
        -1.7265625 ,  1.890625  ],
       [-0.8984375 ,  1.65625   ,  2.484375  , ..., -1.5625    ,
        -1.421875  ,  2.859375  ],
       [ 0.01367188,  1.34375   ,  0.296875  , ..., -1.4375    ,
        -0.9453125 ,  0.27148438],
       ...,
       [-3.71875   ,  0.58203125, -0.45898438, ..., -0.9453125 ,
        -0.94140625,  2.21875   ],
       [-2.5       ,  1.421875  , -1.6953125 , ..., -0.14453125,
        -0.93359375,  2.28125   ],
       [-1.265625  ,  1.890625  , -2.921875  , ...,  0.08789062,
         0.7890625 ,  2.390625  ]], dtype=float32)

Generate cell-type-specific embeddings¶

We use cell-type-specific chromatin accessibility peak and signal files as input.

The embed_regulator API uses these data to build a cell-type-specific model and generate cell-type-specific embeddings.

[ ]:

results_myoblast_specific_3 = embed_regulator(
    region = "../data/myoblast_ENCFF647RNC_peak_100.bed", # Your input regions
    regulator = "myf5", # Your regulators
    odir = "./output_cell_specific_emb_myf5", # Output directory
    cell_type_bw = "../data/myoblast_ENCFF149ERN_signal.bigwig", # your focus cell-type accessibility data
    cell_type_peak = "../data/myoblast_ENCFF647RNC_peak.bed", # your focus cell-type peak data
    genome = "hg38", # Genome
    resolution = "1kb", # Resolution
)

[ ]:
