Interpret regulator-regulator interactions¶

This notebook demonstrates how to infer regulator-regulator interactions network using the ChromBERT-tools Python API.

The interpret_regulator_regulator_interactions API generates context-aware regulator embeddings and calculates the cosine similarity of each regulator pair. Regulators with higher cosine similarity are considered more likely to interact.

For the bash command-line usage, see `examples/cli/interpret_regulator_regulator_interactions.ipynb <../cli/interpret_regulator_regulator_interactions.ipynb>`__.

For more details, please refer to the `interpret_regulator_regulator_interactions <https://chrombert-tools.readthedocs.io/en/latest/commands/interpret_regulator_regulator_interactions.html>`__ command documentation

[1]:

from chrombert_tools import interpret_regulator_regulator_interactions

Pre-trained¶

[ ]:

# Infer regulator-regulator interactions across focus regions
# Returns:
#   all_cos_sim: cosine similarity matrix of regulator-regulator representations on focus regions; indicates interaction strength between regulators.
#   df_edges: DataFrame with columns [node1, node2, cosine_similarity]
#   Contains edges in the regulatory network where similarity >= threshold
#   Contains subnetwork visualizations for specified regulators

all_cos_sim, df_edges = interpret_regulator_regulator_interactions(
    region="../data/CTCF_ENCFF664UGR_sample100.bed",
    regulator="ctcf;nanog;ezh2",      # Plot subnetworks for these regulators
    odir="./output_regulator_network",
    genome="hg38",                      # Options: "hg38", "mm10"
    resolution="1kb",                   # Options: "1kb", "2kb", "4kb", "200bp"
)

Region summary - total: 100, overlapping with ChromBERT: 100 (one region may overlap multiple ChromBERT regions, we keep overlaps with ≥50% coverage of either the ChromBERT bin or the input region), non-overlapping: 0
Note: All regulator names were converted to lowercase for matching.
Regulator count summary - requested: 3, matched in ChromBERT: 3, not found: 0, not found regulator: []
ChromBERT regulators: /mnt/Storage/home/chenqianqian/.cache/chrombert/data/config/hg38_6k_regulators_list.txt
Load pretrained ckpt /mnt/Storage/home/chenqianqian/.cache/chrombert/data/checkpoint/hg38_6k_1kb_pretrain.ckpt successfully!
Your supervised_file does not contain the 'label' column. Please verify whether ground truth column ('label') is required. If it is not needed, you may disregard this message.

100%|██████████| 2/2 [00:04<00:00,  2.24s/it]

Total graph nodes: 951
Total graph edges (threshold=0.636): 11503

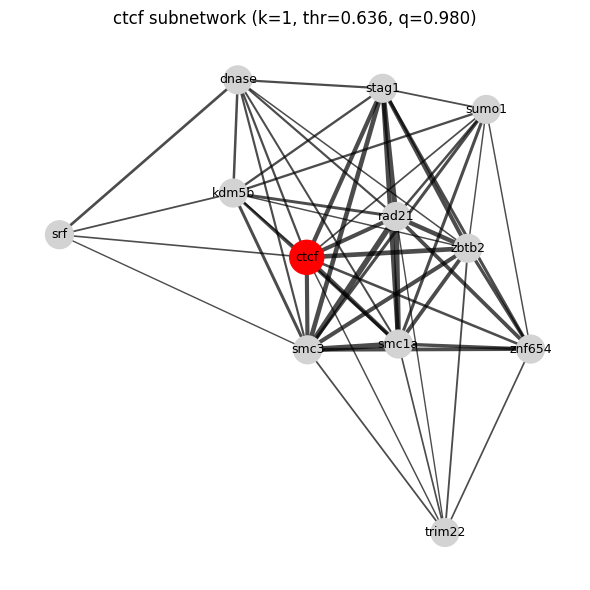

Regulator subnetwork saved to: ./output_regulator_network/subnetwork_nanog_k1_q0.980_thr0.636.pdf

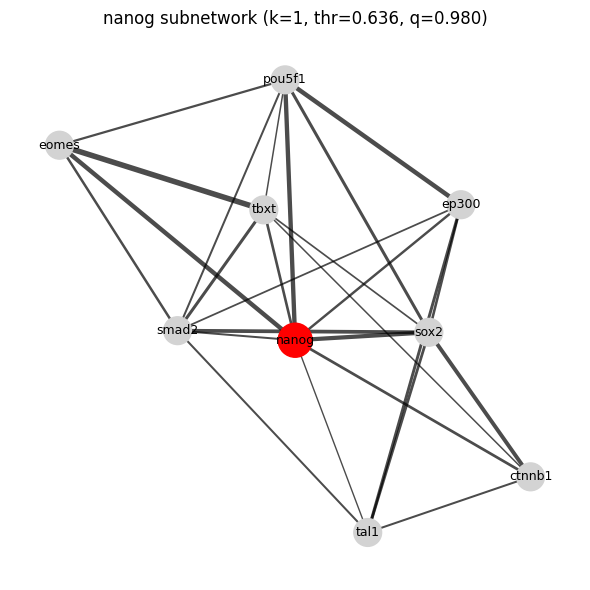

Regulator subnetwork saved to: ./output_regulator_network/subnetwork_ctcf_k1_q0.980_thr0.636.pdf

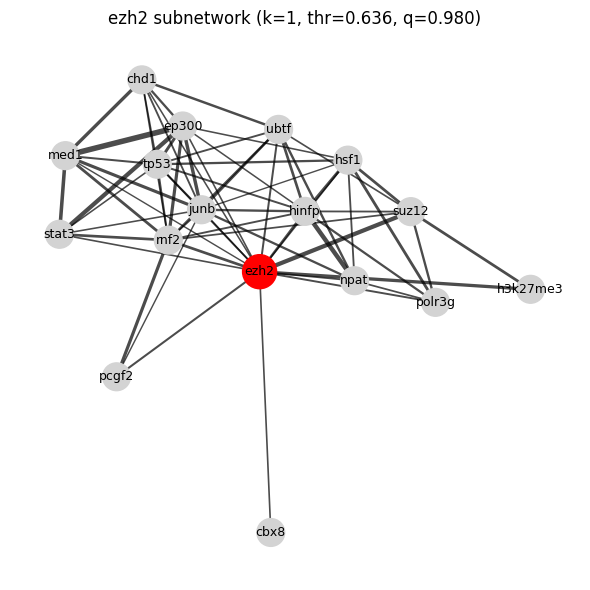

Regulator subnetwork saved to: ./output_regulator_network/subnetwork_ezh2_k1_q0.980_thr0.636.pdf
Finished!
Saved outputs to: ./output_regulator_network
Regulator cosine similarity saved to: ./output_regulator_network/regulator_cosine_similarity.tsv
Total graph edges saved to: ./output_regulator_network/total_graph_edge_threshold0.636_quantile0.980.tsv

../../_images/examples_api_interpret_regulator_regulator_interactions_3_3.png

../../_images/examples_api_interpret_regulator_regulator_interactions_3_4.png

../../_images/examples_api_interpret_regulator_regulator_interactions_3_5.png

[4]:

# Pairwise regulator cosine similarity matrix
all_cos_sim

[4]:

	5hmc	adnp	aebp2	aff1	aff4	ago1	ago2	ahr	ahrr	alkbh3	...	zscan20	zscan22	zscan23	zscan29	zscan31	zscan5a	zta	zxdb	zxdc	zzz3
5hmc	1.000000	0.161553	0.285241	0.158628	0.117248	0.127353	0.164635	0.140008	0.140390	0.256362	...	0.343546	0.136590	0.344879	0.193269	0.168963	0.255532	0.340011	0.150076	0.061059	0.330447
adnp	0.161553	1.000000	0.587140	0.387827	0.471895	0.130505	0.207243	0.277108	0.308542	0.250292	...	0.399306	0.333286	0.455049	0.514076	0.365677	0.465939	0.225964	0.436089	0.300675	0.241342
aebp2	0.285241	0.587140	1.000000	0.308597	0.402976	0.124346	0.206790	0.248920	0.429926	0.295569	...	0.407240	0.224415	0.319738	0.286058	0.308937	0.247846	0.316289	0.215994	0.166821	0.273573
aff1	0.158628	0.387827	0.308597	1.000000	0.681266	0.235524	0.285841	0.336590	0.390974	0.265273	...	0.386461	0.306672	0.318689	0.370916	0.413583	0.343913	0.262005	0.297290	0.231193	0.262453
aff4	0.117248	0.471895	0.402976	0.681266	1.000000	0.253977	0.326415	0.329043	0.368464	0.319714	...	0.380179	0.447794	0.403113	0.396646	0.423483	0.385116	0.332274	0.390634	0.394011	0.287089
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
zscan5a	0.255532	0.465939	0.247846	0.343913	0.385116	0.259383	0.276472	0.326592	0.212140	0.211508	...	0.757539	0.434079	0.870642	0.482686	0.472391	1.000000	0.179671	0.647394	0.424395	0.084673
zta	0.340011	0.225964	0.316289	0.262005	0.332274	0.036716	0.130013	0.184514	0.272651	0.305709	...	0.270659	0.260485	0.195705	0.184984	0.326114	0.179671	1.000000	0.087392	0.076405	0.419953
zxdb	0.150076	0.436089	0.215994	0.297290	0.390634	0.309995	0.294769	0.320665	0.209873	0.151475	...	0.573041	0.541771	0.619564	0.468207	0.393382	0.647394	0.087392	1.000000	0.497639	0.033969
zxdc	0.061059	0.300675	0.166821	0.231193	0.394011	0.333499	0.287851	0.590078	0.343713	0.153941	...	0.304457	0.302000	0.406280	0.343347	0.191912	0.424395	0.076405	0.497639	1.000000	0.017482
zzz3	0.330447	0.241342	0.273573	0.262453	0.287089	-0.040804	0.054807	0.071938	0.219917	0.250210	...	0.204509	0.221356	0.077926	0.130979	0.319954	0.084673	0.419953	0.033969	0.017482	1.000000

1073 rows × 1073 columns

[5]:

# Edge list of the regulator-regulator network.

df_edges

[5]:

	node1	node2	cosine_similarity
0	5hmc	brdu	0.701982
1	5hmc	rloop	0.756476
2	5hmc	sirt1	0.664322
3	5hmc	znf823	0.641759
4	adnp	atf5	0.710570
...	...	...	...
11498	zscan20	zscan23	0.739037
11499	zscan20	zscan5a	0.757539
11500	zscan22	zscan31	0.712420
11501	zscan23	zscan5a	0.870642
11502	zscan5a	zxdb	0.647394

11503 rows × 3 columns

[6]:

# Edge list of the ctcf subnetwork.


df_edges_ctcf = df_edges.query("node1 == 'ctcf'")
df_edges_ctcf

[6]:

	node1	node2	cosine_similarity
1682	ctcf	dnase	0.704624
1683	ctcf	kdm5b	0.658326
1684	ctcf	rad21	0.851742
1685	ctcf	smc1a	0.844970
1686	ctcf	smc3	0.856302
1687	ctcf	srf	0.656536
1688	ctcf	stag1	0.865400
1689	ctcf	sumo1	0.663740
1690	ctcf	trim22	0.642802
1691	ctcf	zbtb2	0.898986
1692	ctcf	znf654	0.731698

[7]:

# Edge list of the nanog subnetwork.
df_edges_nanog = df_edges.query("node1 == 'nanog'")
df_edges_nanog

[7]:

	node1	node2	cosine_similarity
5293	nanog	pou5f1	0.755285
5294	nanog	smad2	0.660624
5295	nanog	sox2	0.749701
5296	nanog	tal1	0.636584
5297	nanog	tbxt	0.686592

[8]:

# Edge list of the ezh2 subnetwork.
df_edges_ezh2 = df_edges.query("node1 == 'ezh2'")
df_edges_ezh2

[8]:

	node1	node2	cosine_similarity
2715	ezh2	h3k27me3	0.751440
2716	ezh2	hinfp	0.694675
2717	ezh2	hsf1	0.656183
2718	ezh2	junb	0.649472
2719	ezh2	med1	0.638378
2720	ezh2	npat	0.655375
2721	ezh2	pcgf2	0.677134
2722	ezh2	polr3g	0.669339
2723	ezh2	rnf2	0.716335
2724	ezh2	stat3	0.652700
2725	ezh2	suz12	0.809129
2726	ezh2	tp53	0.662590
2727	ezh2	ubtf	0.673707

[10]:

# Edge list of the myod1 subnetwork.

df_edges_myod1= df_edges.query("node1 == 'myod1' or node2 == 'myod1'")
df_edges_myod1

[10]:

	node1	node2	cosine_similarity
294	ascl1	myod1	0.713746
5248	myod1	myog	0.643061
5249	myod1	neurog2	0.704578
5250	myod1	tcf21	0.664360
5251	myod1	zbtb42	0.637871

cell-type-specific (myoblast)¶

[ ]:

# # Download example data
# # Myoblast and fibroblast data: ATAC-seq bigWig and peak files
# import subprocess
# import os
# if not os.path.exists('../data/myoblast_ENCFF647RNC_peak.bed'):
#     cmd = f'wget https://www.encodeproject.org/files/ENCFF647RNC/@@download/ENCFF647RNC.bed.gz -O ../data/myoblast_ENCFF647RNC_peak.bed.gz'
#     subprocess.run(cmd, shell=True)
#     cmd = f"gzip -d ../data/myoblast_ENCFF647RNC_peak.bed.gz"
#     subprocess.run(cmd, shell=True)

# if not os.path.exists('../data/myoblast_ENCFF149ERN_signal.bigwig'):
#     cmd = f'wget https://www.encodeproject.org/files/ENCFF149ERN/@@download/ENCFF149ERN.bigWig -O ../data/myoblast_ENCFF149ERN_signal.bigwig'
#     subprocess.run(cmd, shell=True)

### fine-tuned a cell-type-specific model
# from chrombert_tools import region_activity_regression
# results_myoblast_specific = region_activity_regression(
#     odir = "./output_cell_specific_emb_train", # output directory
#     cell_type_bw = "../data/myoblast_ENCFF149ERN_signal.bigwig", # your focus cell-type accessibility data
#     cell_type_peak = "../data/myoblast_ENCFF647RNC_peak.bed", # your focus cell-type peak data
#     genome = "hg38", # genome
#     resolution = "1kb", # resolution
# )

[ ]:

import glob
ft_ckpt_dir = "./output_cell_specific_emb_train/train/**/*.ckpt" # Use checkpoints from embed_region.ipynb if available; otherwise, run the code above first

ft_ckpt = glob.glob(ft_ckpt_dir, recursive=True)[0]
ft_ckpt

'./output_cell_specific_emb_train/train/try_00_seed_55/lightning_logs/lightning_logs/version_0/checkpoints/epoch=3-step=239.ckpt'

[ ]:

all_cos_sim_myobl, df_edges_myobl = interpret_regulator_regulator_interactions(
    region="../data/myoblast_ENCFF647RNC_peak_100.bed",
    # region="../data/CTCF_ENCFF664UGR_sample100.bed",
    regulator="myod1",      # Plot subnetworks for these regulators
    odir="./output_regulator_network", # output directory
    ft_ckpt=ft_ckpt,  # fine-tuned checkpoint
    genome="hg38",                      # Options: "hg38", "mm10"
    resolution="1kb",                   # Options: "1kb", "2kb", "4kb", "200bp"
)

Region summary - total: 100, overlapping with ChromBERT: 101 (one region may overlap multiple ChromBERT regions, we keep overlaps with ≥50% coverage of either the ChromBERT bin or the input region), non-overlapping: 0
Note: All regulator names were converted to lowercase for matching.
Regulator count summary - requested: 1, matched in ChromBERT: 1, not found: 0, not found regulator: []
ChromBERT regulators: /mnt/Storage/home/chenqianqian/.cache/chrombert/data/config/hg38_6k_regulators_list.txt
Load pretrained ckpt /mnt/Storage/home/chenqianqian/.cache/chrombert/data/checkpoint/hg38_6k_1kb_pretrain.ckpt successfully!
Loading checkpoint from ./output_cell_specific_emb_train/train/try_00_seed_55/lightning_logs/lightning_logs/version_0/checkpoints/epoch=3-step=239.ckpt
Loading from pl module, remove prefix 'model.'
Loading from pl module, replace 'pretrain_model' with 'pretrain_model.chrombert'
Loaded 111/111 parameters
Your supervised_file does not contain the 'label' column. Please verify whether ground truth column ('label') is required. If it is not needed, you may disregard this message.

100%|██████████| 2/2 [00:02<00:00,  1.46s/it]

Total graph nodes: 915
Total graph edges (threshold=0.636): 11503

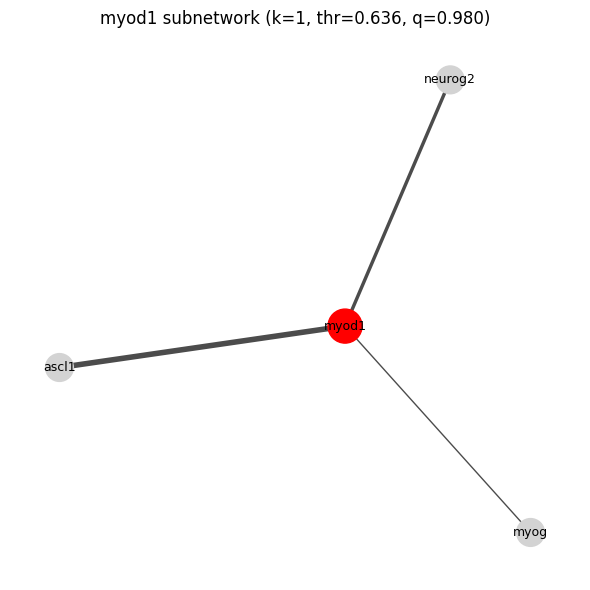

Regulator subnetwork saved to: ./output_regulator_network/subnetwork_myod1_k1_q0.980_thr0.636.pdf
Finished!
Saved outputs to: ./output_regulator_network
Regulator cosine similarity saved to: ./output_regulator_network/regulator_cosine_similarity.tsv
Total graph edges saved to: ./output_regulator_network/total_graph_edge_threshold0.636_quantile0.980.tsv

../../_images/examples_api_interpret_regulator_regulator_interactions_13_3.png

[4]:

df_edges_myobl.query("node1 == 'myod1'")

[4]:

	node1	node2	cosine_similarity
5177	myod1	myog	0.657007
5178	myod1	neurog2	0.671825

[ ]:

[ ]:
